Thermaltake Power Supply Toughpower GF 750W
Thermaltake Power Supply Toughpower GF 750W
Available:
In Stock
Wishlist
Compare
- Category: Featured Products, Power Supply, Thermaltake
Rs.24,000.00
- Order within

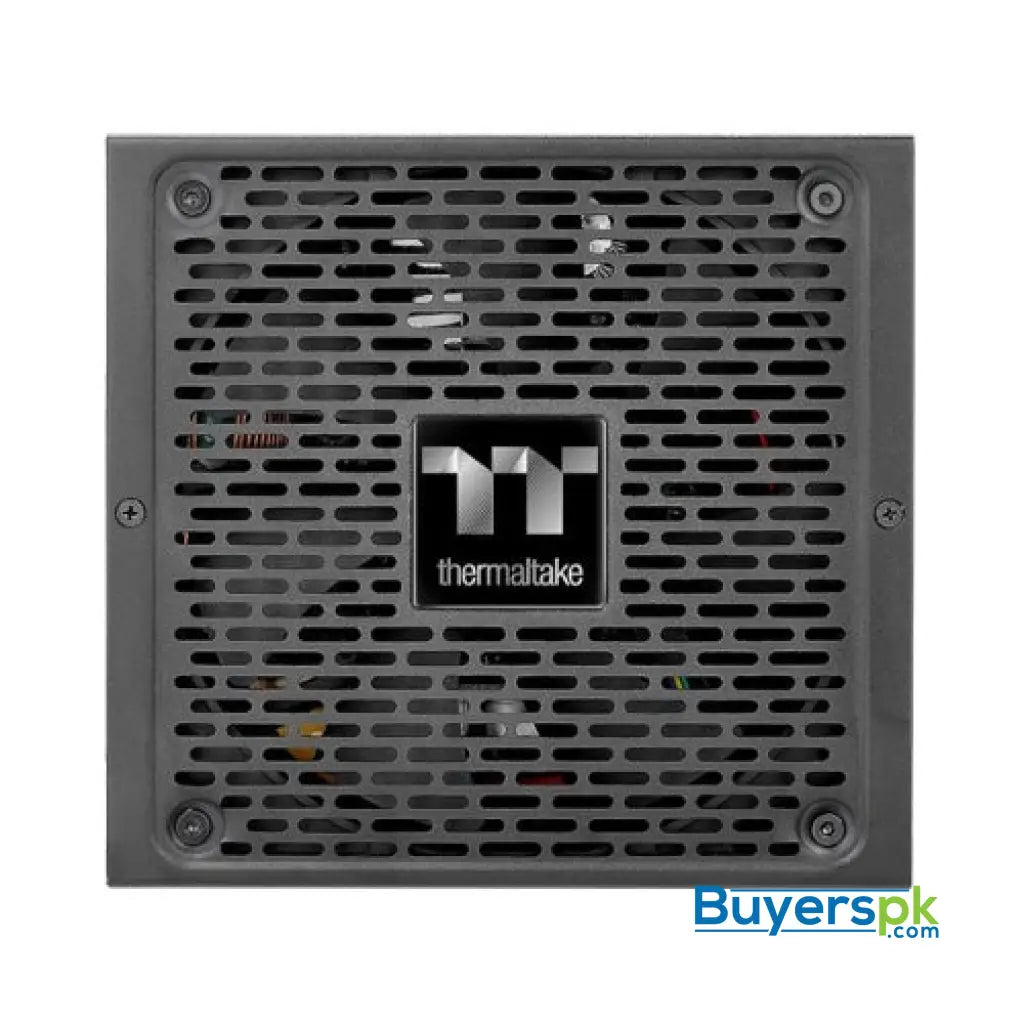

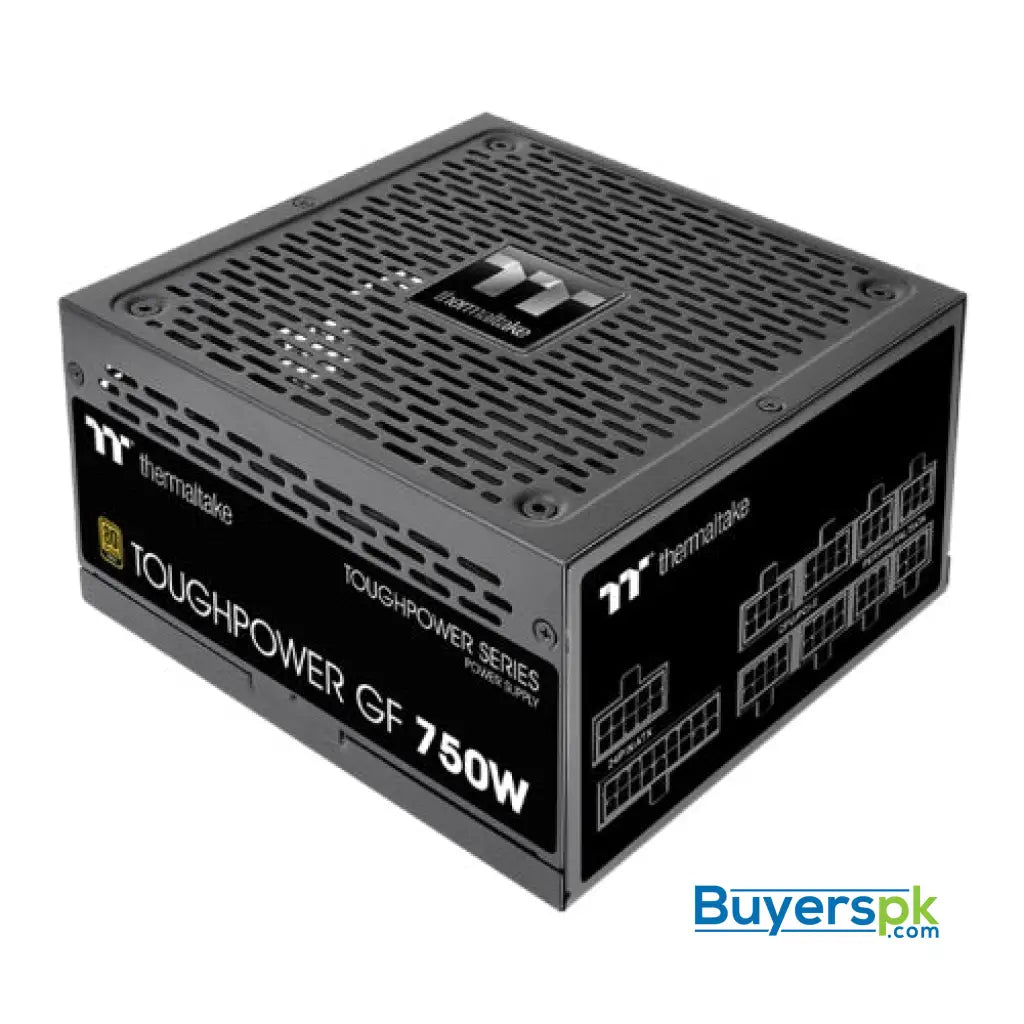

Thermaltake Power Supply Toughpower GF 750W
80 PLUS Gold certified fully modular PSU with Hydraulic Bearing Fan.
| P/N | PS-TPD-0750FNFAGU-2 |
|---|---|
| WATTS | 750W |
| MODEL | TTP-750AH3FCG-B |
| MAX. OUTPUT CAPACITY | 750W |
| PEAK OUTPUT CAPACITY | 900W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 12msec at 80% of full load at 230Vac input |
| INPUT CURRENT | 10A max. |
| INPUT FREQUENCY RANGE | 47Hz - 63Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/EAC |
| PCI-E 6+2PIN | 4 |
