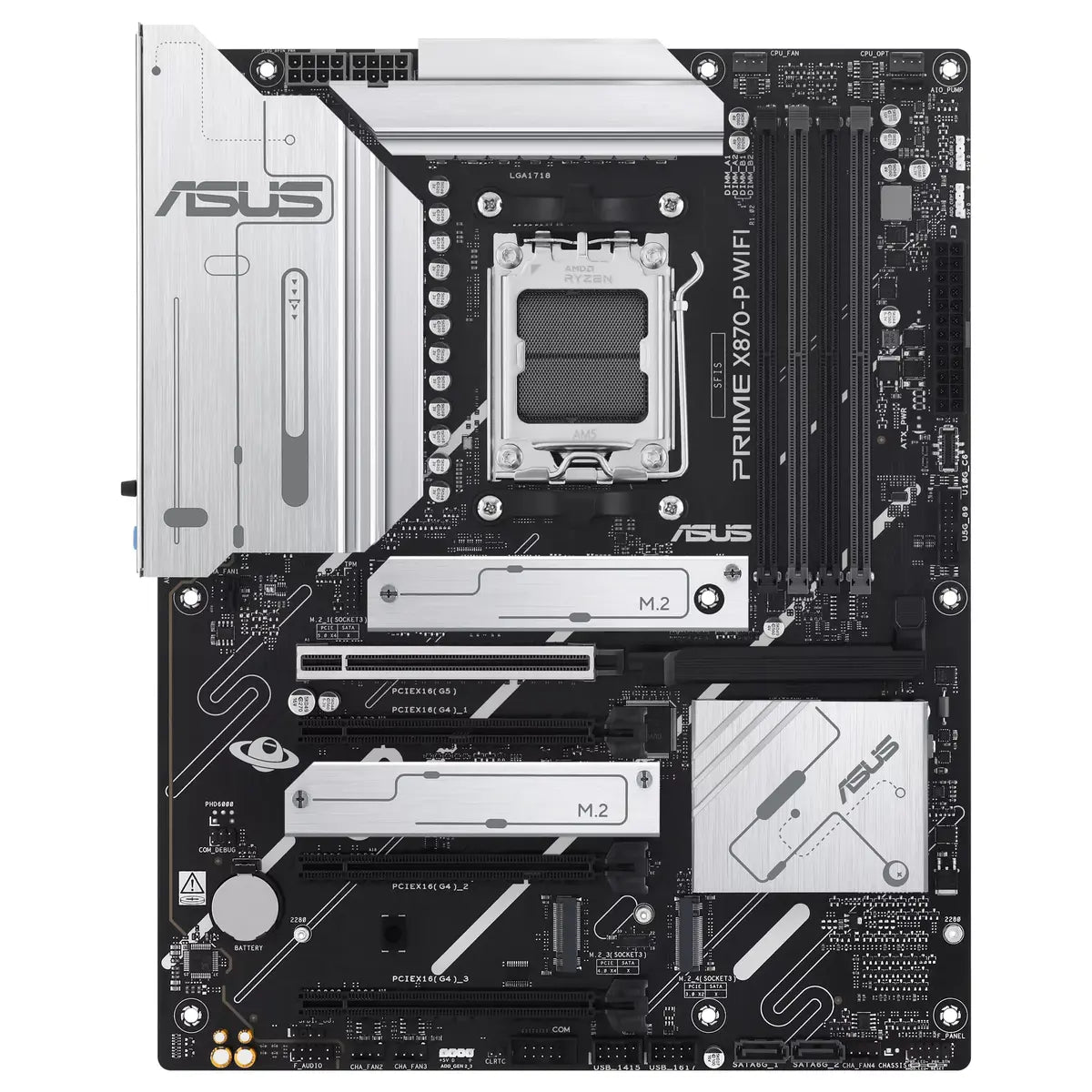

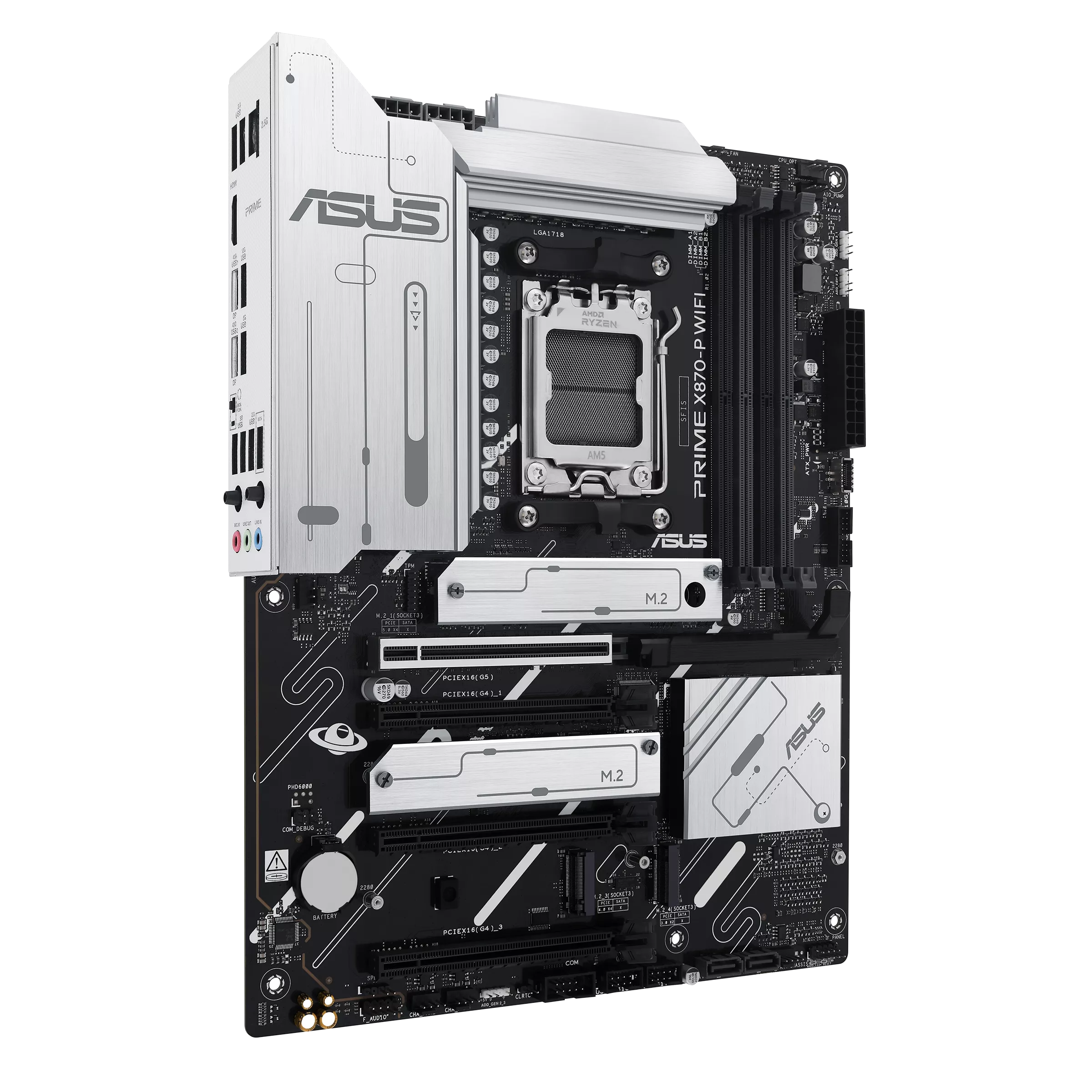

Asus Motherboard Prime X870 P Wifi CSM DDR5 Price in Pakistan

Build a fast, feature-rich AMD Socket AM5 PC with strong connectivity for everyday work, gaming, and demanding AI applications. With Wi-Fi 7, USB4 40Gbps Type-C, and PCIe 5.0 support, upgrades and high-speed devices fit right in.

• AMD Socket AM5 for AMD Ryzen 9000 and 8000 and 7000 Series
• 4xDIMM DDR5, Up To 256GB, Up To 8000+MT/s(OC)
• 1xPCIe 5.0 x16 slot, 3xPCIe 4.0 x16 slots
• Wi-Fi 7 2x2 and Bluetooth 5.4, Realtek 2.5Gb Ethernet

Product Features

AMD Socket AM5 Platform for Ryzen Desktop CPUs: Build around AMD Socket AM5 with support for AMD Ryzen 9000 and 8000 and 7000 Series Desktop Processors. This makes it a strong foundation for a new PC build or a platform refresh while staying within the same socket ecosystem. Pairing the board with the right CPU lets you focus on performance tuning and everyday stability through the board's firmware and software options.

Wi-Fi 7 and 2.5Gb Ethernet Connectivity: Connect wirelessly with 2x2 Wi-Fi 7 (802.11be) support across 2.4/5/6GHz bands for stable connections and lower latency. When you want a wired setup, Realtek 2.5Gb Ethernet is ready for fast, consistent networking. Bluetooth v5.4 adds convenient device pairing for compatible peripherals.

High-Speed USB Type-C with USB4 40Gbps: Plug in modern devices and drives using dual rear USB4 (40Gbps) Type-C ports, designed for the latest super-speed accessories. Additional USB options include USB 10Gbps and USB 5Gbps ports for flexible everyday connectivity. For front-panel convenience, the board includes a USB 10Gbps connector that supports USB Type-C.

PCIe 5.0 and Multi-M.2 Storage Support: Expand your system with PCIe 5.0 slot support for graphics card and storage, plus multiple PCIe 4.0 x16 slots for additional expansion needs. Storage flexibility comes from support for 4xM.2 slots and 2xSATA 6Gb/s ports, letting you mix and match drives based on your build goals. RAID support via AMD RAIDXpert2 Technology helps configure supported RAID levels depending on the Ryzen series used.

Product Specifications

Model: PRIME X870-P WIFI-CSM

Socket: AMD Socket AM5

CPU Support: AMD Ryzen 9000 and 8000 and 7000 Series Desktop Processors

Chipset: AMD X870 Chipset

Form Factor: ATX Form Factor

Dimensions: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Operating System: Windows 11

Memory Slots: 4 x DIMM slots

Max Memory: 256GB

Memory Type: DDR5

Memory Speed: Supports up to 8000+MT/s(OC) with Ryzen 9000 and 8000 and 7000 Series Processors

Memory Support: ECC and Non-ECC, Un-buffered DIMM, Dual channel memory architecture

Memory Profiles: AMD EXPO, ASUS AEMP

Graphics Outputs: 1 x HDMI port, 2 x USB4 (40Gbps) ports support USB Type-C display outputs

HDMI Support: Supports 4K@60Hz as specified in HDMI 2.1

USB Type-C Display Output: Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Expansion Slots (Ryzen 9000 and 7000): 1 x PCIe 5.0 x16 slot (supports x16 mode)

Expansion Slots (Ryzen 8000): 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

Expansion Slots (Chipset): 3 x PCIe 4.0 x16 slots (support x1 mode)

Storage Support: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

M.2 (Ryzen 9000 and 7000): M.2_1 (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2 (Ryzen 8000): M.2_1 (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2 (Chipset): M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2 (Chipset): M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2 (Chipset): M.2_4 (Key M), type 2280 (supports PCIe 3.0 x2 mode)

SATA: 2 x SATA 6Gb/s ports

RAID (Ryzen 9000): RAID 0/1/5/10

RAID (Ryzen 8000): RAID 0/1

RAID (Ryzen 7000): RAID 0/1/10

Ethernet: 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard

Wireless: Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be)

Wi-Fi Bands: Supports 2.4/5/6GHz frequency band

Wi-Fi Bandwidth: Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth: Bluetooth v5.4

Rear USB Total: 10 ports

Rear USB: 2 x USB4 (40Gbps) ports (2 x USB Type-C)

Rear USB: 1 x USB 10Gbps port (1 x Type-A)

Rear USB: 3 x USB 5Gbps ports (3 x Type-A)

Rear USB: 4 x USB 2.0 ports (4 x Type-A)

Front USB Total: 7 ports

Front USB: 1 x USB 10Gbps connector (supports USB Type-C)

Front USB: 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

Front USB: 2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB Type-C Power Delivery Output: max. 5V/3A

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Playback: Supports up to 24-Bit/192 kHz playback

Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

Back Panel I/O: 2 x USB4 (40Gbps) Type-C, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A

Back Panel I/O: 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port

Back Panel I/O: 3 x Audio jacks, 1 x BIOS FlashBack button

Internal Fan Headers: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan

Power Connectors: 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power

Internal USB: 1 x USB 10Gbps connector (supports USB Type-C), 1 x USB 5Gbps header, 2 x USB 2.0 headers

Internal Misc: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header

Internal Misc: 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header

Internal Misc: 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header

Special Features: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync

Software Features: Armoury Crate, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z

UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey

Remote Management: ASUS Control Center Express (ACCE)

BIOS: 256Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, PXE

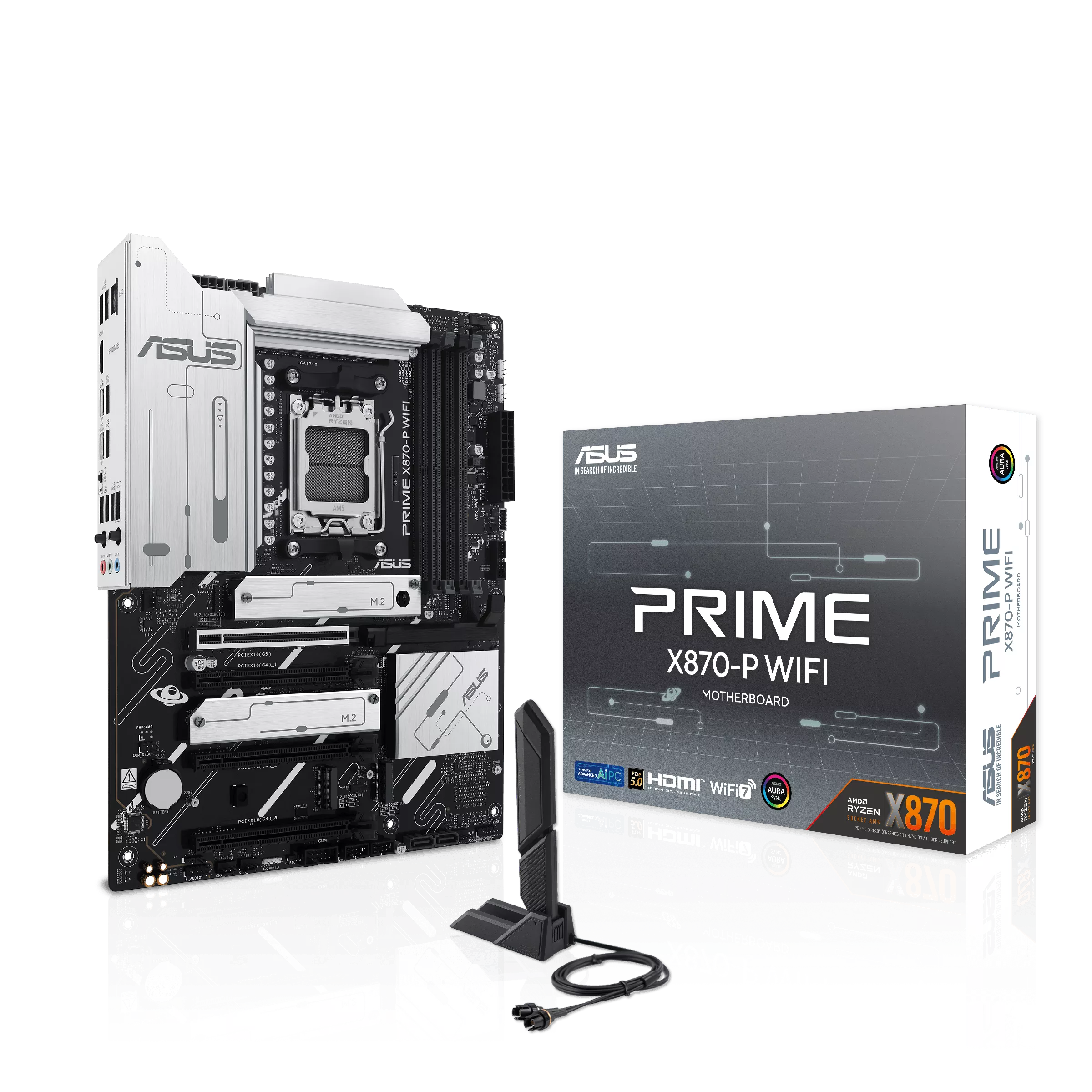

Accessories: 2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, M.2 rubber package

Accessories: 2 x Screw packages for M.2 SSD, ACC Express Activation Key Card, Quick start guide
