GIGABYTE Z390 AORUS Ultra (Intel LGA1151/Z390/ATX/3xM.2 Thermal Guard/Onboard AC Wi-Fi/RGB Fusion/Motherboard)
- Supports 9th and 8th Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- 12+1 Phases Digital VRM Solution with DrMOS
- Advanced Thermal Design with Direct Touch Heatpipe
- Onboard Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi
- ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
From the manufacturer
Â
Team Up. Fight On.
AORUS, a premium gaming brand powered by GIGABYTE, delivers a full spectrum of gaming products ranging from gaming laptops, motherboards, graphics cards, mechanical gaming keyboards, to many other gaming hardware and gears, offering the most extreme gaming experiences for enthusiasts worldwide!

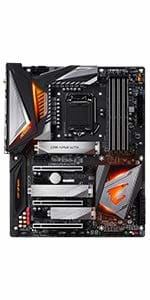

Z390 AORUS ULTRA
AORUS Z390 motherboards are designed with thermals and speed in mind, ensuring users can best take advantage of Intel 9th generation processors. The AORUS and GIGABYTE Z390 series is loaded with a variety of premium feature sets and each board provides a sweet spot in performance and value. Assemble your next PC with AORUS and start with a strong foundation as each motherboard is built with Ultra Durable materials.
- Supports Intel 8th & 9th Gen Core i9/i7/i5/i3, Celeron, and Pentium Processors
- Dual Channel DDR4, 4 DIMMs
- 12+1 Phases Digital VRM Solution with DrMOS
- Advanced Thermal Design with Direct Touch Heatpipe
- RGB FUSION with Multi-Zone LED Light Show Design
- Smart Fan 5 with Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen 1 Type-C Header
- Triple M.2 with Triple Thermal Guards
Unique Features
|
|
|
|
|---|---|---|

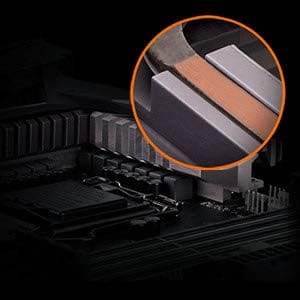

Advanced Thermal DesignThe Z390 AORUS ULTRA uses a high performance thermal design by combining its multi-cut heatsink with a Direct Touch Heatpipe and thick thermal pads to provide ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. |
Ultra-Fast WIFISmash the GbE barrier with Intel's next-gen wireless solution which enables gigabit wireless performance, provides smooth video streaming and better gaming experience, with speeds up to 1.73Gbps. |
Smart Fan 5With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard and gives users up-to-the-second details on flow rate and temperatures. |
Unique Features
|
|
|
|
|---|---|---|
Triple M.2 with Triple Thermal GuardWith durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. |
RGB FusionThe onboard Digital LED's shine beautifully against the Z390 motherboard's monochrome pallet. Paint your system with bold colors with full RGB support and a redesigned RGB Fusion application, which gives the user complete control over the LEDs which surround the motherboard. |
AORUS 360 ArmorAORUS motherboards are layered with Ultra Durable protection, such as an Integrated I/O shield, memory armor and PCIe armor, to give users a strong foundation to build their gaming systems. |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Z390 AORUS MASTER | Z390 AORUS ULTRA | Z390 AORUS PRO WIFI | Z390 AORUS PRO | Z390 AORUS ELITE | |
| CPU Support | 9th and 8th Gen Intel Core Processors | 9th and 8th Gen Intel Core Processors | 9th and 8th Gen Intel Core Processors | 9th and 8th Gen Intel Core Processors | 9th and 8th Gen Intel Core Processors |
| CPU Power Phase | 12 +2 Phase IR Digital VRM | 12+1 Phase Digital VRM | 12+1 Phase Digital VRM | 12+1 Phase Digital VRM | 12+1 Phase Digital VRM |
| Memory Type | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 | Dual-Channel DDR4 |
| Memory DIMMs | 4*DIMMs | 4*DIMMs | 4*DIMMs | 4*DIMMs | 4*DIMMs |
| Graphics Interface | 1*PCIe 3.0 x16 + 1*PCIe 3.0 x8 | 1*PCIe 3.0 x16 + 1*PCIe 3.0 x8 | 1*PCIe 3.0 x16 + 1*PCIe 3.0 x8 | 1*PCIe 3.0 x16 + 1*PCIe 3.0 x8 | 1*PCIe 3.0 x16 |
| Expansion Slots | 1*PCIe 3.0 x4 + 3*PCIe 3.0 x1 | 1*PCIe 3.0 x4 + 3*PCIe 3.0 x1 | 1*PCIe 3.0 x4 + 3*PCIe 3.0 x1 | 1*PCIe 3.0 x4 + 3*PCIe 3.0 x1 | 1*PCIe 3.0 x4 + 4*PCIe 3.0 x1 |
| M.2 | 3 (M.2 Heatsink *3) | 3 (M.2 Heatsink *3) | 2( M.2 Heatsink *2) | 2( M.2 Heatsink *2) | 2 (M.2 Heatsink *1) |
| Display Interface | HDMI | HDMI | HDMI | HDMI | HDMI |
| WIFI | Intel CNVi 2x2 802.11ac wireless | Intel CNVi 2x2 802.11ac wireless | Intel CNVi 2x2 802.11ac wireless | N/A | N/A |
| Audio | ALC 1220-VB + ESS9118 | ALC 1220-VB | ALC 1220-VB | ALC 1220-VB | ALC 1220-VB |
